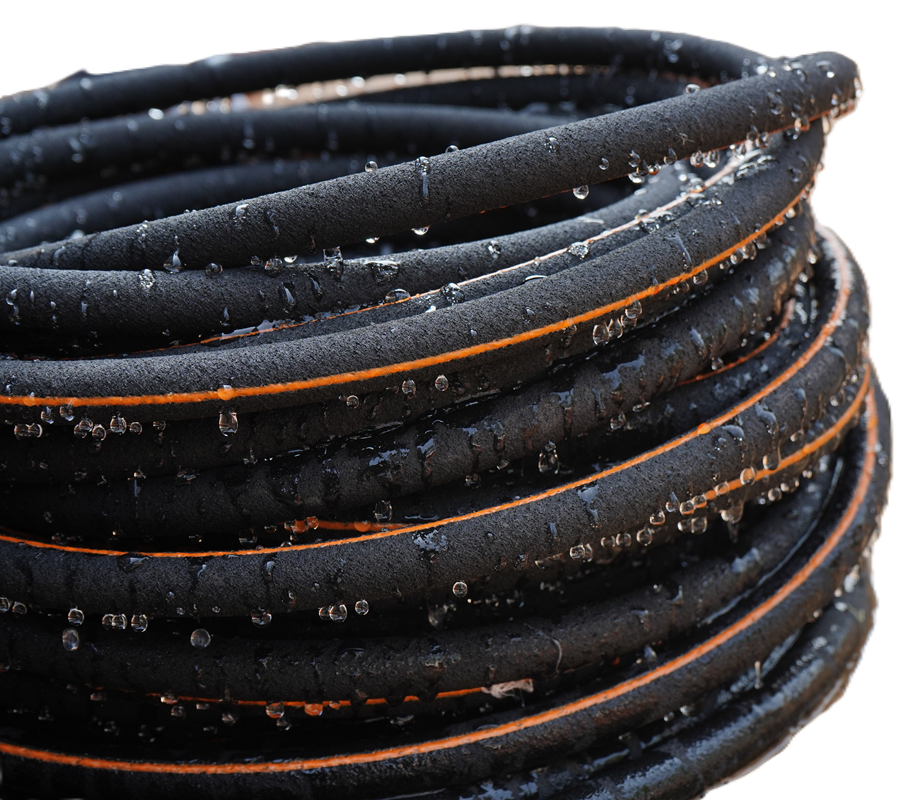

The small outer size makes it suitable for installation over PCC
This size is preferred especially over PCC and even where the space available between the cement and granite / marble is less.The inside diameter is 9.5 mm or 3/8 inch and the wall thickness is 2.5 mm, giving it an outside dimension of 14.5 mm

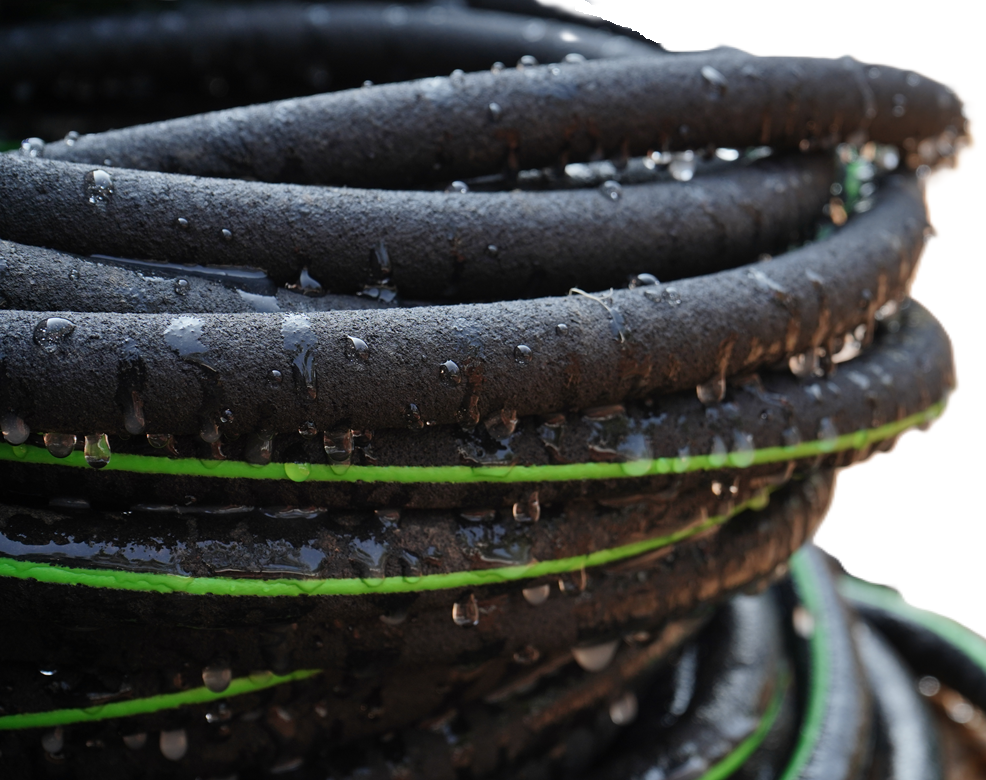

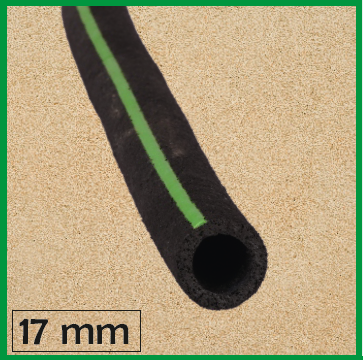

Read MoreOur most popular size suitable for all areas - whether you wish to install it in the soil at floor level, on PCC under the tiles or outside the house
Inside diameter is 12.5 mm and outside is 17.5 mm, so we call it 17.5 mm but our customers often refer to it as the 16 mm regular thickness size because fittings used are of 16 mm

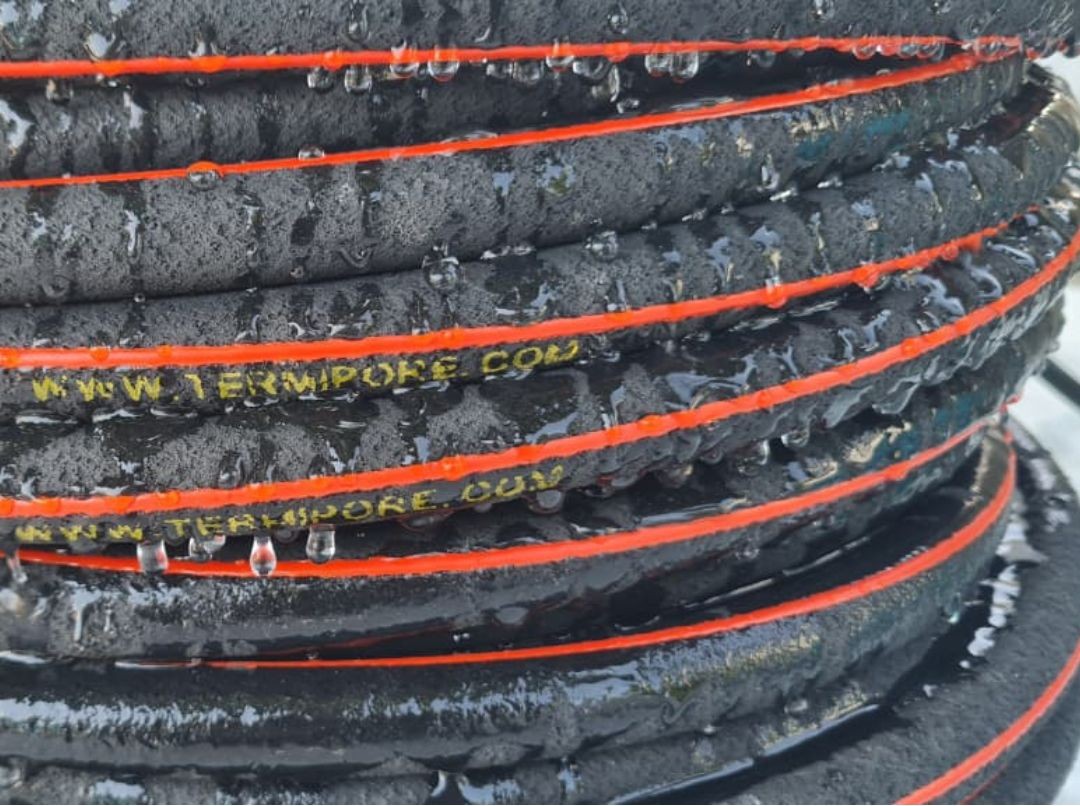

Read MoreThis is our premium product with higher wall thickness of 3.5 mm ; that is 40% more than the standard thickness pipe
The higher thickness ensures more weight bearing capacity and also higher consistency of flow along the length of the pipe

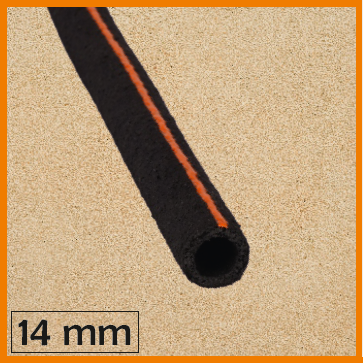

Read MoreThis is the 14 mm size with higher wall thickness of 3.0 mm ; that is 40% more than the standard thickness 14 mm pipe
The higher thickness ensures more weight bearing capacity and also higher consistency of flow along the length of the pipe
Read More16 mm low thickness pipe with yellow line. This is similar to many other competitor products or products like porous pipe that are made by other companies.
This low thickness product is recommended only where budget is low and one still wants to go for reticulation. The low thickness causes problems like bending of pipe, blocking of termiticide during pumping and inconsistent flow along the length. This Tube uses standard 16 mm fittings but the thickness is only 2.0 mm.
Read MoreTP095145 | TP125175 | TP125195 | |
---|---|---|---|
Inside and outside diameter | 9.5 x 14.5 mm | 12.5 x 17.5 mm | 12.5 x 19.5 mm |
Marking Line | Orange | Green | Red |
Suitable for | On PCC / Under tile | Suitable for all areas | Where high weight bearing is needed |
Recommended place to use | On PCC / Under tile | On PCC and also in soil at plinth level | In soil at plinth level |
Special property | Low diameter pipe for medium flow rate over longer distance | Standard size with uniform flow rate good thickness for weight support | Higher thickness, more weight bearing capacity and more uniform flow along length of pipe |
Micro Hole Density per mtr length | 40 to 70 | 50 to 80 | 60 to 100 |
flow per mtr per hour at pressure 0.25 Kg/ cm2 | 6 to 10 ltr | 8 to 12 ltr | 8 to 12 ltr |
Length of Roll | 125 mtr / 400 ft | 125 mtr / 400 ft | 125 mtr / 400 ft |
